Model a wormhole.

The Morris–Thorne metric, particles crossing the throat, waves bending in curved space—and the exotic-matter wall that ruins the engineering.

Live instrument preview · actual RK4 geodesics · self-tests run on load

Poster frame of the Wormhole Physics Playground: the Einstein ring of an Ellis throat with a second universe visible through the opening Enter the live instrument →
Live RK4 · Ellis throat r0 = 1 · 96 steps WebGL2 raytrace
This is not peer-reviewed research. It's an exploratory tool for understanding the mathematics of wormhole spacetimes. The geometry is mathematically consistent; the engineering it implies is impossible with known physics.

Picture the shortcut: a wormhole is a hypothetical shortcut between two far-apart places in space — a tunnel through the universe. This page doesn't draw a sci-fi picture; it runs the real equations to ask whether one could actually exist. The verdict: the math is self-consistent. You can describe a stable tunnel on paper. But propping it open needs a kind of “exotic matter” with negative energy that, as far as anyone knows, can't be made. For a metre-wide throat the shortfall is about 46 orders of magnitude.

A geometry playground with hard limits

Inside the simulator

  • An implementation of the Morris–Thorne / Ellis metric that self-tests against the flat-space and photon-orbit limits on load
  • A geodesic solver that sends particles through the throat
  • A curved-space wave equation you can watch in real time
  • A map of where the physics breaks

Outside the claim

  • A claim that wormholes can be built
  • A source of exotic matter or negative energy
  • A topology-change mechanism (that needs new physics)
  • Peer-reviewed, or pretending to be

What the simulator found

ResultVerdictWhat it means
Geodesic traversal Works Particles cross cleanly for zero angular momentum.

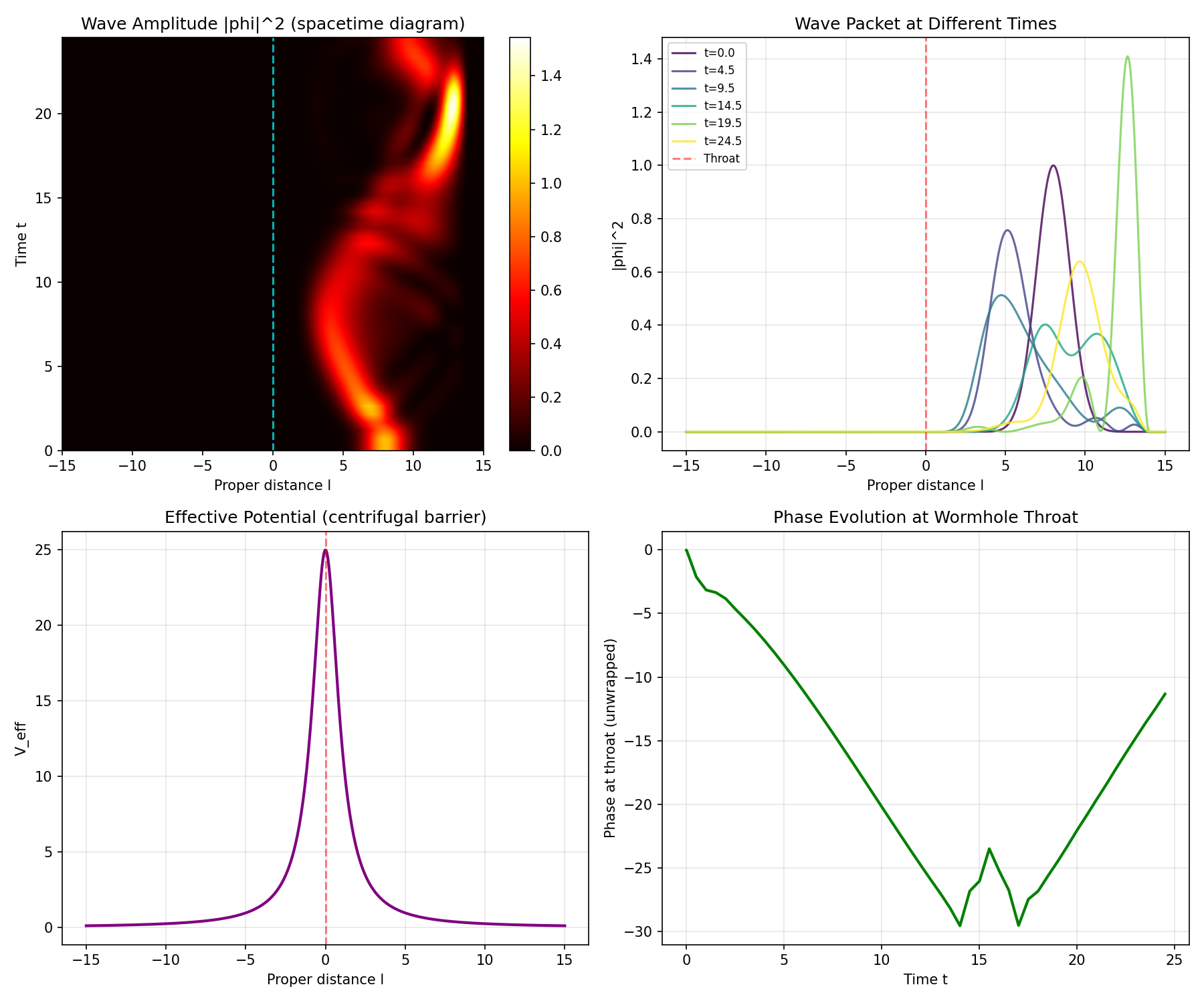

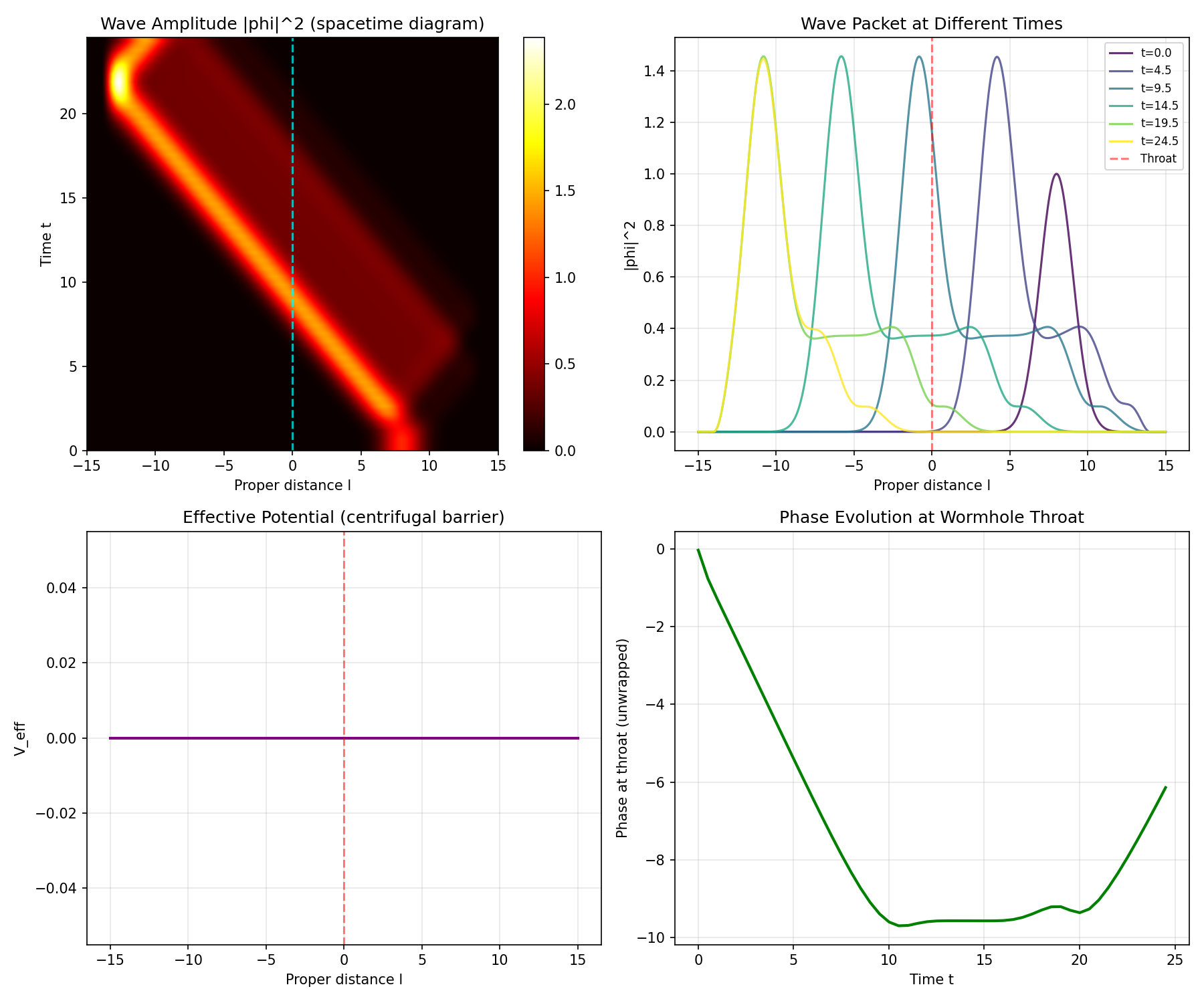

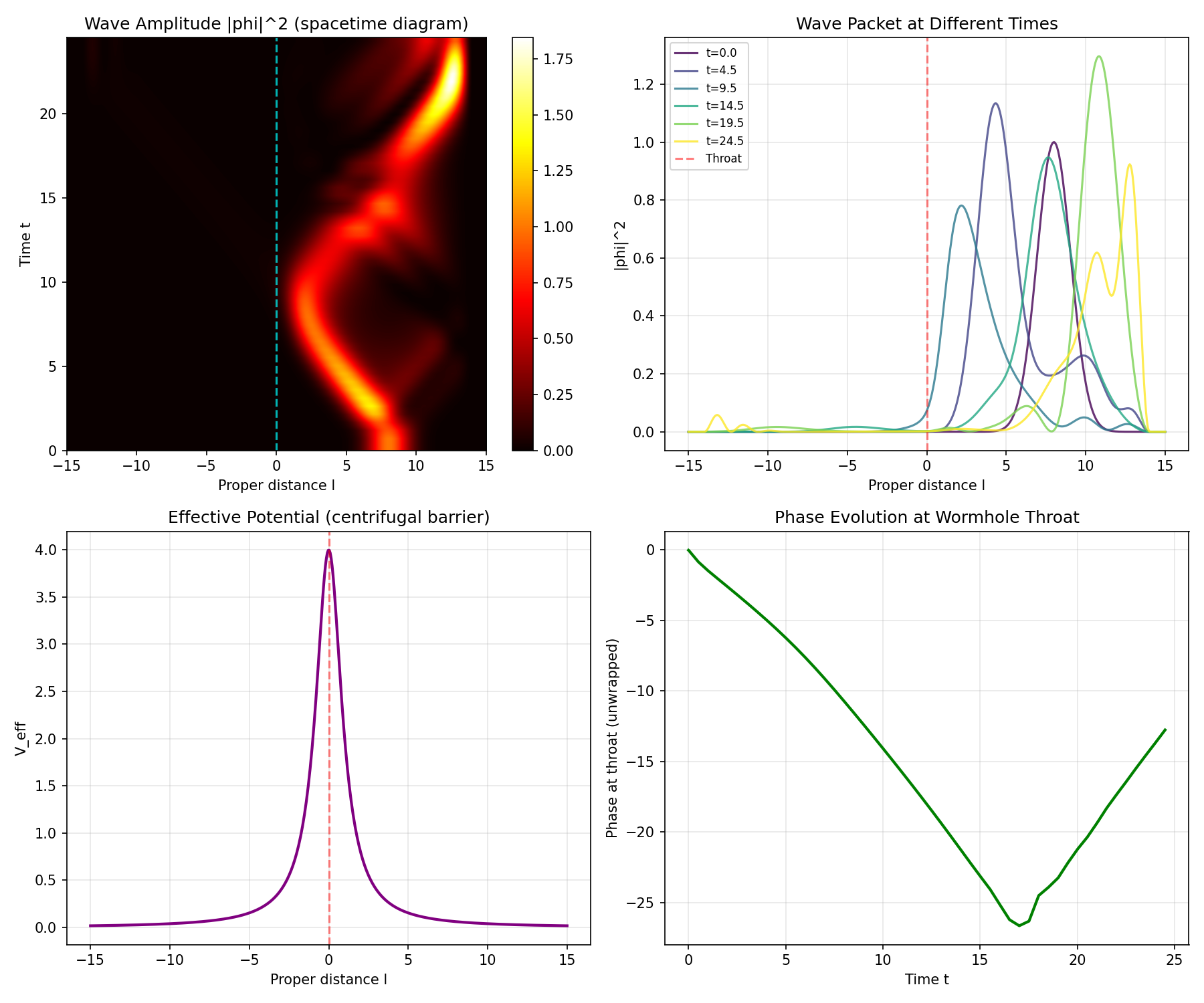

Angular-momentum filtering Robust m=0 waves pass; higher-m modes reflect off a centrifugal barrier at the throat. Pure geometry.
Stability Conditional Stable configurations exist only while exotic matter is continuously sustained. Remove it, it collapses.
Formation from flat space Impossible Exotic matter can deform spacetime but cannot change its topology. Classically, you cannot create one.
Exotic-matter budget 46-order gap A 1 m throat needs ~5×10²⁵ kg/m³ of negative energy density (≈5×10⁴² J/m³). The Casimir effect offers ~4×10⁻⁴ J/m³.
The bottom line: the mathematics is beautiful, the physics is self-consistent, and the engineering is impossible with anything we know how to build. The exotic-matter requirement isn't an engineering hurdle — it's the wall.

A sibling result, corrected

This page used to pair the throat with the sibling Kozyrev Mirror experiment, where a spiral boundary appeared to generate angular momentum from zero. That number turned out to be a numerical artifact: an unstable time step. Re-tested with a real wave solver, a spiral mirror adds a twist to waves only when energy escapes, and nothing in equilibrium (the Honest Spiral). The throat filtering high-m modes here is a separate result and does not rest on that one.

From the runs
